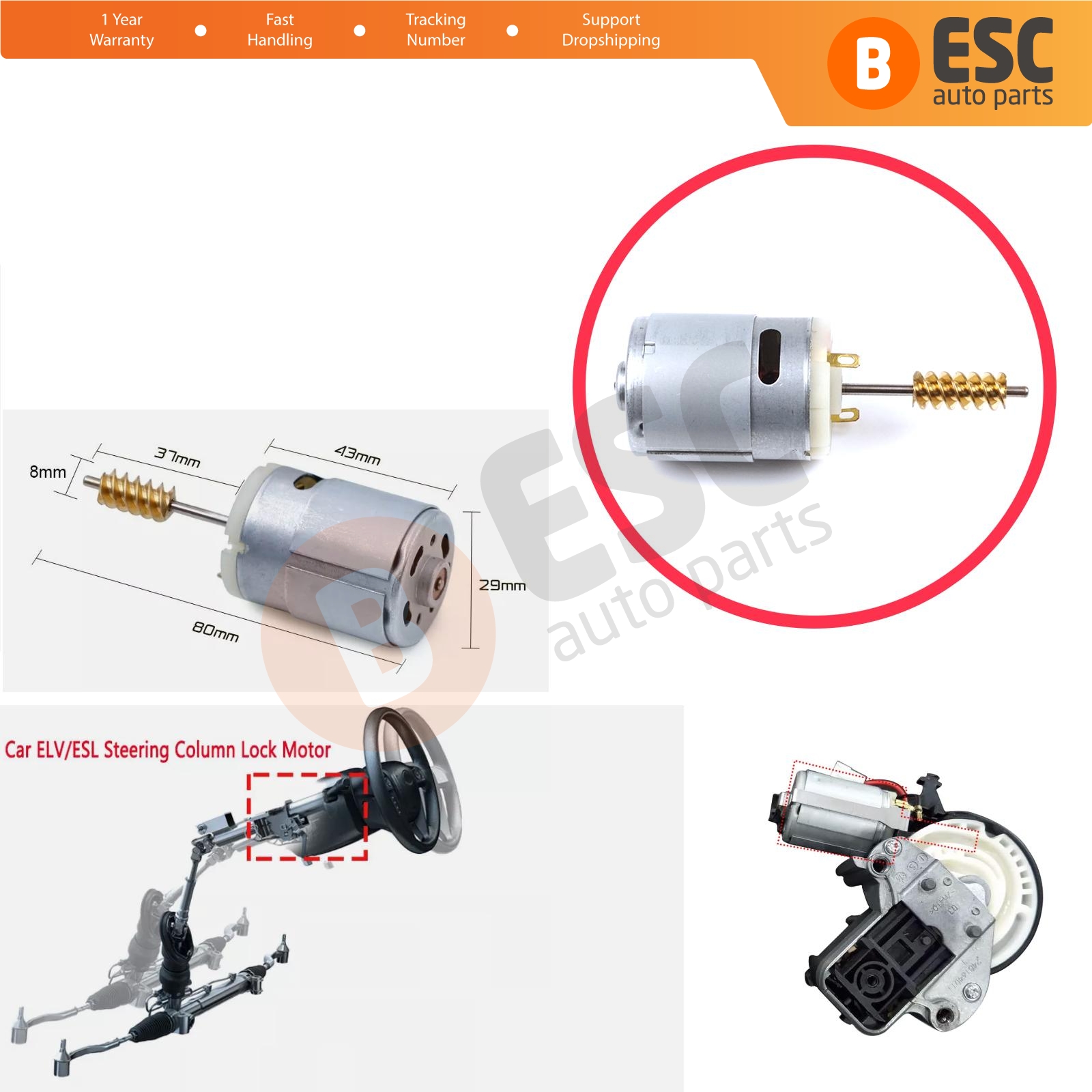

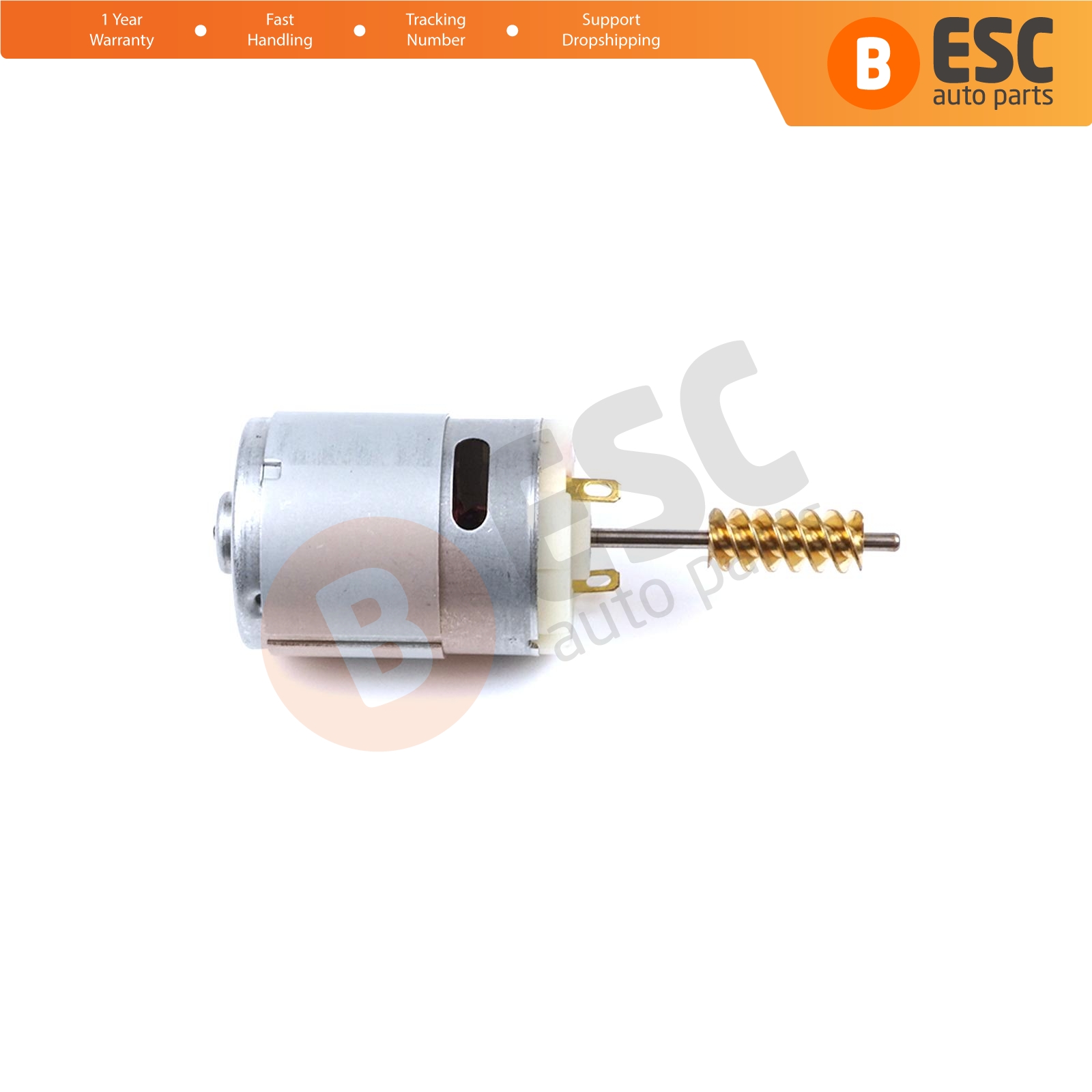

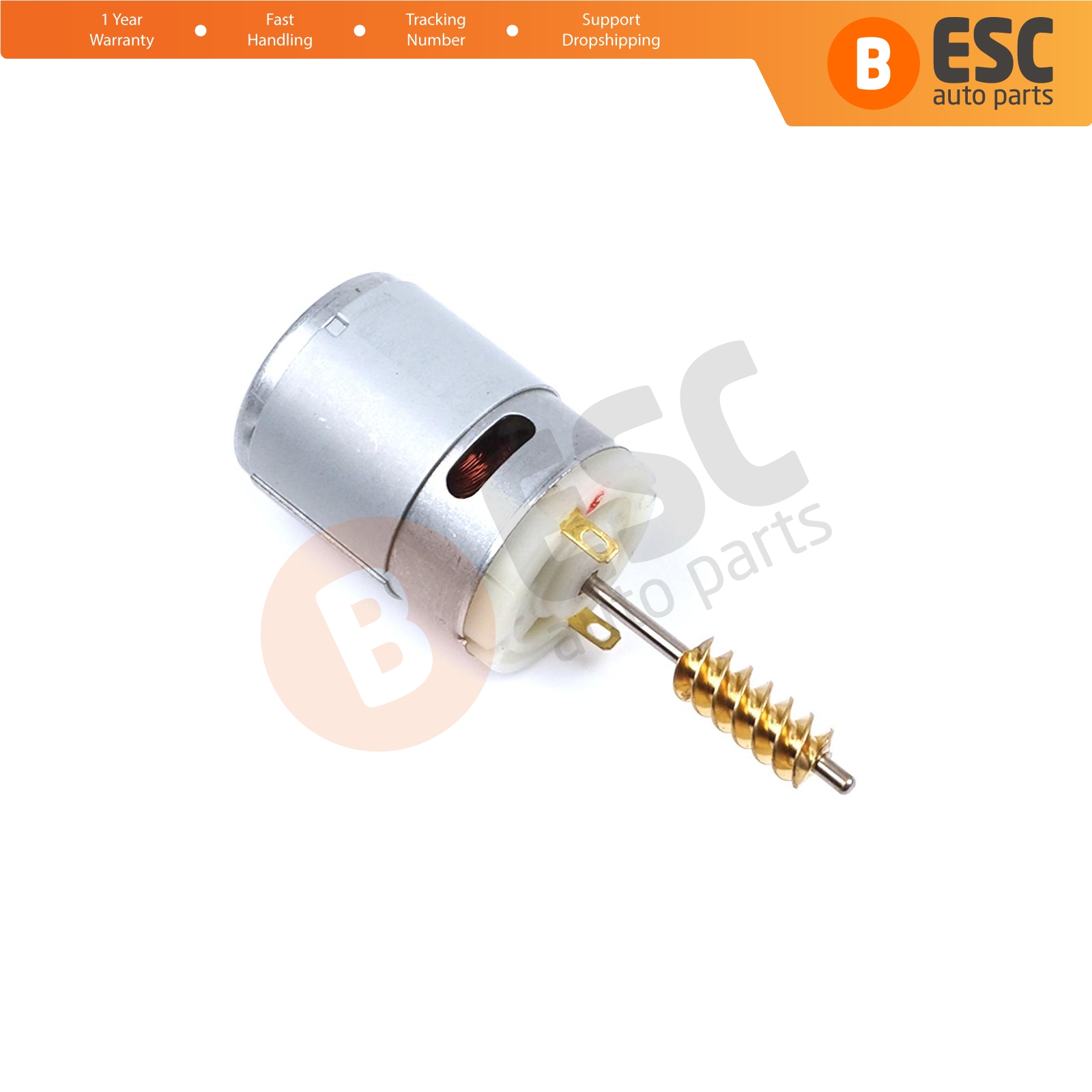

ELV ESL Electronic Steering Wheel Column Ignition Lock Start Module Core 12V Motor for Audi A6 C6 4F S6 A6L Q7 4L J518 22130
The module is a part of vehicle's steering column. Module failure is a common issue in Audi A6/S6 and Q7 model vehicles. The issue is typically identified by no start and no response from key in the ignition, or proximity access (Start button).
The Start / Stop Authorization Module (along with the Electronic Ignition Switch) is responsible for key/transponder recognition, unlocking/locking of steering wheel and powering up all modules in the vehicle.
If there is an issue with any of the lock module components (actuator motor, sensing micro switches, relay) or the integrated Immobilizer system Microprocessor/PCB, the module will not provide power to Terminal 15 (ignition on). End result, no ignition and no engine start.
The module will typically store "00288 - Steering Column Lock Actuator (N360) - Defective" fault.
Reference numbers from old parts: 410002013B, 410002011H, 32062
Please note that while actuator motor failure is common, it does not necessarily mean a 100% fix for module related issues.
Changing only the actuator motor may or may not resolve the actual problem. There are other problematic components within the module that may fail and result in fault code "00288 - Steering Column Lock Actuator (N360) - Defective".

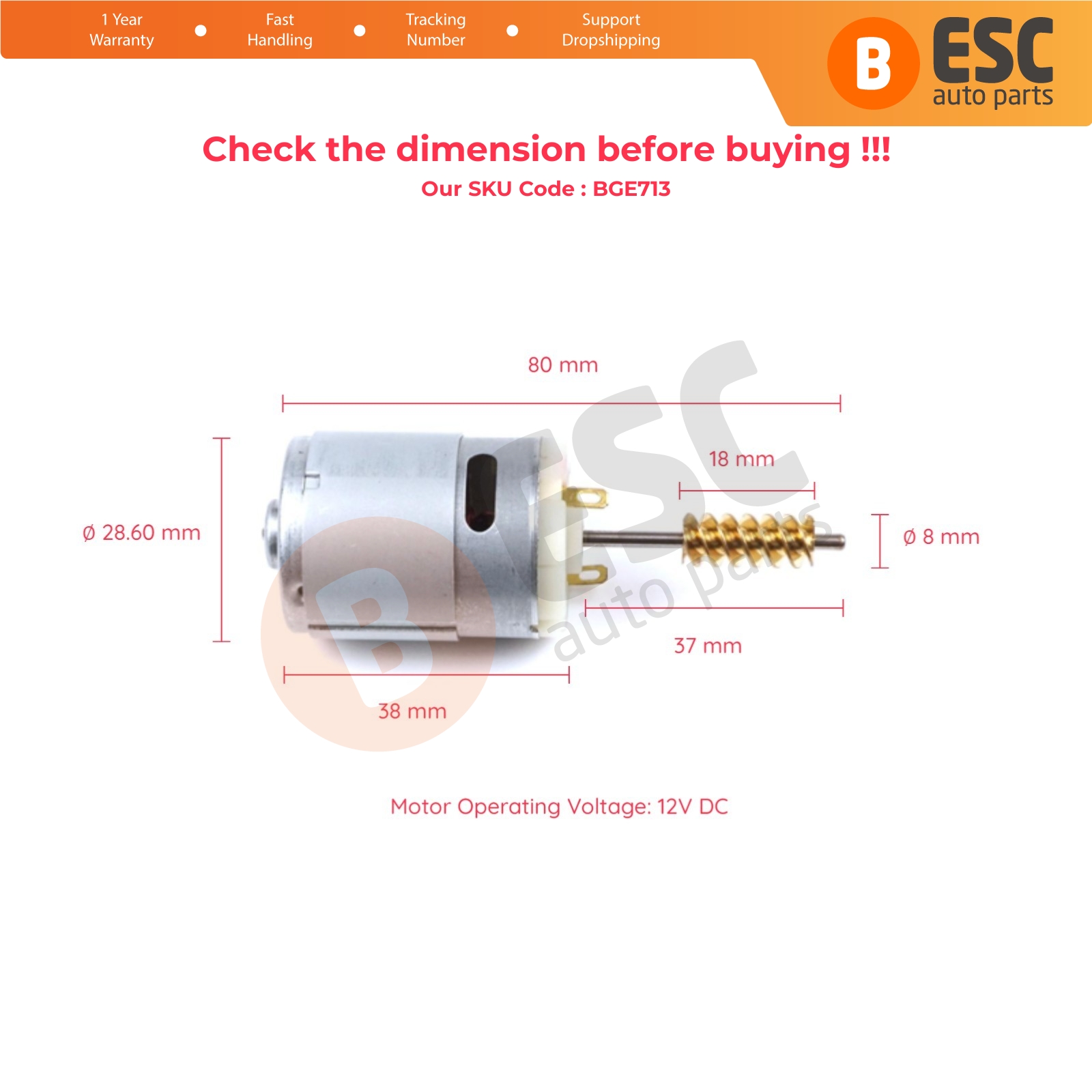

Total Length: 80 mm
Motor Shaft Lengthh: 37 mm
Gear Length: 18 mm
Gear Diameter: 8 mm
Motor Operating Voltage: 12V DC
No Load Speed: 12000-16000RPM
Mounting: Push-in style terminals.
Direction: Can be operated in either direction, simply reverse power supply polarity
Replacement part for OEM:
410002013B, 410002011H, 32062, J518
Fits:
Audi A6 C6 4F 2004-2011;
Audi A6 S6 2006-2011;
Audi A6L 2005–2009;
Audi Q7 MK1 4L 2006-2015.
